ホーム 製品前払いされた水道メーター

電池によって運転される弁によって前払いされる水および電気のメートル防水GPRSは送信します

電池によって運転される弁によって前払いされる水および電気のメートル防水GPRSは送信します

    • Battery Driven Valve Prepaid Water And Electricity Meters Waterproof GPRS Transmit
    • Battery Driven Valve Prepaid Water And Electricity Meters Waterproof GPRS Transmit
  • Battery Driven Valve Prepaid Water And Electricity Meters Waterproof GPRS Transmit

    商品の詳細:

    起源の場所: 中国
    ブランド名: Calin
    証明: CE/SABS/IEC
    モデル番号: CA568-G

    お支払配送条件:

    最小注文数量: 交渉
    価格: Negotiation
    パッケージの詳細: カートン
    受渡し時間: 30 日間
    支払条件: ウェスタン・ユニオン、Paypal、T/T、L/C
    供給の能力: 毎月10,000個
    連絡先
    詳細製品概要
    製品名: GPRSの遠隔読書前払いの水道メーター 標準: 2004/22/EC (中間)、OIML R49
    重量: 1300 の g ディスプレイ: LCD/反対
    精度: クラス B コミュニケーション: GPRS
    ハイライト:

    遠隔水道メーター

    ,

    前払いの水道メーター

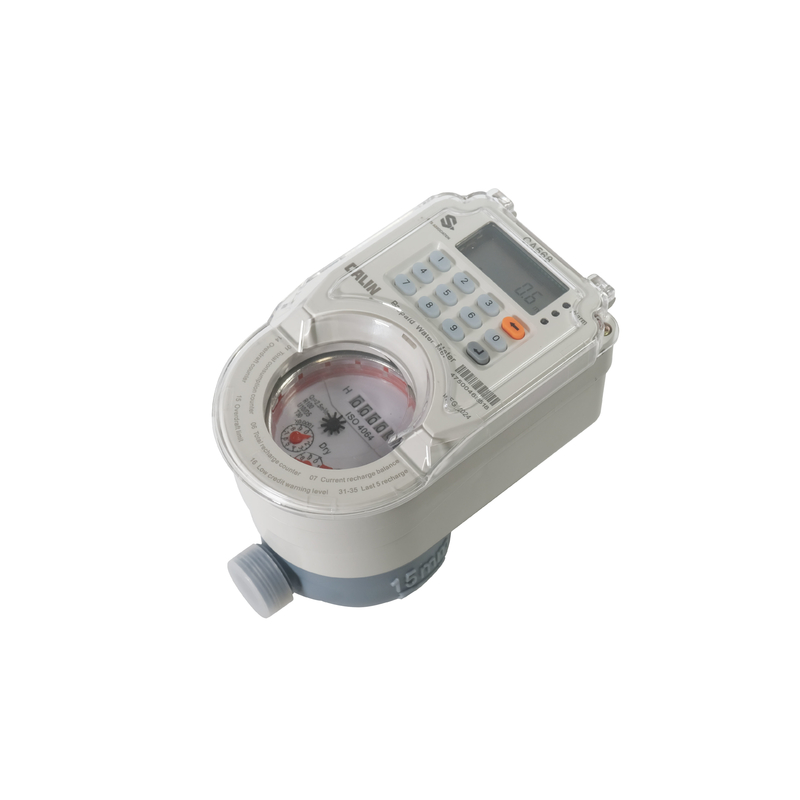

    Battery Driven Valve Waterproof GPRS Transmit Prepaid Water meter in Indonesia

    The CA568-G  is a multi-jet wet / dry type, GPRS remote reading and prepaid water meter.  The meter works with a low power  bistable latched valve driven by battery that is able to open and shut for 4 million times during battery lifetime.  CA568-G series assure you of continuously good metrology and revenue protection at the same time.With potted electronic part  sealed above on the metering chamber, away from the water, which makes the meter water proof and adaptable to humid and tropical environments.



    The meter works with our Billing system station, the water meters can transmit the data via GPRS to the Billing station.

    To top-up or recharge the water meter, a consumer just need to purchase 20 digits'  credit token from the vendor and punch in the code with the CIU. With our broad range of prepaid vending solutions, a utility or service provider can manage not only water meter but also STS prepaid electricity meters in one vending system.



    Calinmeter has over 10 years experience in STS prepayment metering. We design, manufacture STS prepayment meters and OEM for other meter factories as well. Indonesia is our strategic long term market and our calin meter meets the national standard in Indonesia. There is no doubt that Calin is the right one you are not going to missing.





    Features

    a) DN15, 20, 25 up to DN100

    b) Wireless LoRa technology

    c) Split operation with an in home CIU

    d) Up to 1 mile communication distance between meter and DCU(Data concentrator)

    e) LCD and Counter register dual display

    f) Potted electronics making meter water resistant in humid and tropical environments

    g) Tamper and fraud proof

    h) Low credit warning

    i) Life time data retention in absence of power

    j) Prepared for AMR / AMI functions (optional)





     Key benefits



    1) Suitable for new reticulation and retrofittings

    2) Multi-tariff and consumption record on Time of Use (TOU) basis

    3) Auto-register with head-end sever system

    4) Easy setting of free basic water, emergency credit, low credit warning, arrear policy

    5) Supports drive-by reading and fully automated reading for AMI smart metering applications

    6) Remote  valve control on / off

    7) Reduced operational and inventory cost





    Specifications:







    Nominal size



    Dn



    mm

                    in-line

    15

    20

    25

    Maximum flow rate

    Q4

    m3/h

    3.125

    5.0

    7.875

    Ratio “R”

        Q3/Q1



    80

    80

    80

    Permanent l flow rate

    Q33





    m3/h

    2.5

    4.0

    6.3

    Transitional flow rate

    Q22

    0.05

    0.08

    0.126

    Minimum flow rate

    Q11

    0.031

    0.05

    0.0787

    Minimum reading



    m3

    0.0005

    Maximum reading

    99999



    Maximum Permission Error (MPE)

    Q1≦Q≦,Q2    MPE =+ 5%           Q2≦Q≦Q4,    MPE= + 2% (For hot water metering, MPE=+ 3%)



    Dimensions and diagram



    Nominal size

    Length

    Width

    Height

    Thread

    mm

    D

    15

    165

    101

    124

    G3/4B

    20

    195

    101

    124

    G1B

    25

    225

    101

    124

    G5/4B
