Mauritius Electronic Valve Controlled IR Remote transmit STS Prepaid Electricity Meter

Mauritius Electronic Valve Controlled IR Remote transmit STS Prepaid Electricity Meter

    • Mauritius Electronic Valve Controlled IR Remote transmit STS Prepaid Electricity Meter
    • Mauritius Electronic Valve Controlled IR Remote transmit STS Prepaid Electricity Meter
  • Mauritius Electronic Valve Controlled IR Remote transmit STS Prepaid Electricity Meter

    商品の詳細:

    起源の場所: 中国
    ブランド名: Calin
    証明: CE/SABS/IEC
    モデル番号: CA568K

    お支払配送条件:

    最小注文数量: 交渉
    価格: Negotiation
    パッケージの詳細: カートン
    受渡し時間: 30 日間
    支払条件: ウェスタン・ユニオン、Paypal、T/T、L/C
    供給の能力: 毎月10,000個
    連絡先
    詳細製品概要
    製品名: LCD表示STS IRのkepay前払いされた水道メーター 標準: STS、2004/22/EC (中間)、OIML R49
    重量: 1300 の g ディスプレイ: LCD/反対
    精度: クラス B 無し: IP67
    ハイライト:

    remote water meter

    ,

    electronic water meter

    Mauritius Electronic Valve Controlled IR Remote transmit STS Prepaid Electricity Meter

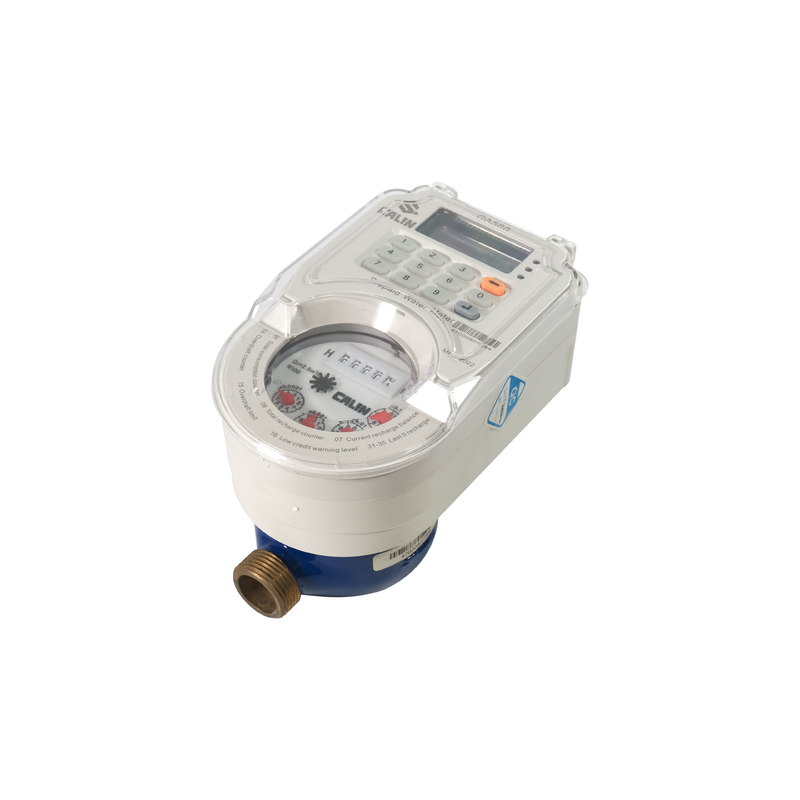

    The CA568 series is an STS (Standard Transfer Specification) compliant, electronic valve controlled, water meter recharging via a built-on 4x3 keypad. With CA568-K series you are assured of continuously good metrology and revenue protection at the same time.The electronic part of the meter is potted and is sealed away from the water, which makes the meter water resistant and adapting to humid and tropical environments.



    The meter operates with STS standard compliant 20 digits' code to handle credit . Customers purchase credit at vending points to get a 20 digits code. They enter this code via IR keypad to the meter and complete the recharge to buy the water!



    It is an ideal domestic water meter for revenue collection and consumer management.The base meter has been supplied and proven by millions of service connections for reliable and cost-effective consumption measurement.



    With our broad range of prepaid vending solutions, a utility or service provider can manage CAW series water meter along with STS prepaid electricity meters in one vending system.



    Calinmeter has over 10 years experience in STS prepayment metering,our company is original meter manufacturer and solution provider, Mauritius is our strategic long term market,we have already provided there before I am surely that calin is the right one supplier you are not missing!



    Features

    a) Wet dial / dry register construction on request

    b) Magnetic field protection

    c) Can be managed and vended along with prepayment electricity meter

    d) Tamper and fraud proof

    e) Low credit warning

    f) Over 10 years’ data retention in absence of power

    g) Duo display of counter register and LCD

    h) Flexible tariff and debt collection setting



     Key benefits

    1) Quick and easy to install for both new reticulation and retrofittings

    2) Easy vending for both utility and consumers

    3) Multi-rate and usage record on Time of Use (TOU) basis

    4) Flexible setting for free basic water, emergency credit, low credit warning, debt collection

    5) Can be extended for AMR AMI smart metering applications, meter readouts

    6) Reduced operational and inventory cost





    Specifications:







    Nominal size



    Dn



    mm

                    in-line

    15

    20

    25

    Maximum flow rate

    Q4

    m3/h

    3.125

    5.0

    7.875

    Ratio “R”

        Q3/Q1



    80

    80

    80

    Permanent l flow rate

    Q33





    m3/h

    2.5

    4.0

    6.3

    Transitional flow rate

    Q22

    0.05

    0.08

    0.126

    Minimum flow rate

    Q11

    0.031

    0.05

    0.0787

    Minimum reading



    m3

    0.0005

    Maximum reading

    99999



    Maximum Permission Error (MPE)

    Q1≦Q≦,Q2    MPE =+ 5%           Q2≦Q≦Q4,    MPE= + 2% (For hot water metering, MPE=+ 3%)



    Dimensions and diagram



    Nominal size

    Length

    Width

    Height

    Thread

    mm

    D

    15

    165

    101

    124

    G3/4B

    20

    195

    101

    124

    G1B

    25

    225

    101

    124

    G5/4B
