CALINのブランドの唯一の法的所有者およびCalinシリーズ実用性メートルの唯一の製造業者。
CalinmeterはCalinのグループか加入として要求するか、または適切な承認なしでCalinのメートル プロダクトを配る実体またはだれでもからの法的制裁を追求する権利を確保する。

|
| 起源の場所: | 中国 |
| ブランド名: | Calin |
| 証明: | CE/SABS/IEC |
| モデル番号: | CAW-SL |
| 最小注文数量: | 交渉 |
|---|---|
| 価格: | Negotiation |
| パッケージの詳細: | カートン |
| 受渡し時間: | 30日 |
| 支払条件: | ウェスタン・ユニオン、Paypal、T/T、L/C |
| 供給の能力: | 1ヶ月あたりの10,000pcs |
| 製品名: | LCD表示STS迎合的な割れたCIUの電池によって運転される前払いされた水道メーター | 標準: | 2004/22/EC （中間）、OIML R49 |
|---|---|---|---|
| 重量: | 1300のg | 表示: | LCD/カウンター |
| 正確さ: | クラスB | コミュニケーション: | LoRa |
| ハイライト: | 迎合的な前払いされた水道メーターsts,ぬれたタイプstsはメートルを前払いした,真鍮stsは水道メーターを前払いした |
||

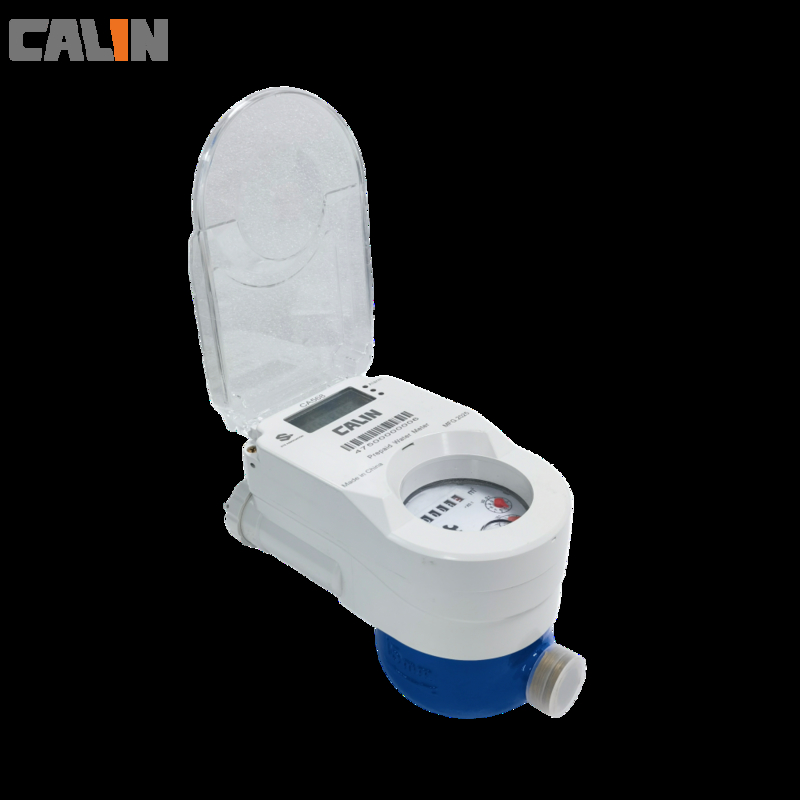

The CA568 series CashWater is a multi-jet wet type, STS compliant prepaid water meter. As a counterpart to Cashpower electric prepaid meter, CA568 works in the same principle, and it is equipped with a motor driven ball valve that shuts off water when the credit drains .
The meter works with a customer interface unit(CIU) through Radio communication.The CIU is installed indoor away from the meter. Consumers buy 20 digits' credit token from the point of sales and input it to the CIU to topup credit to the meter. Information like token acceptance and rejection, credit status, historical usage data can be displayed with the LCD of the CIU.This split design makes the meter immune to any tamper and fraud.
The meter is reinforced in its wireless communication with LoRa technology, allowing the meter to communicate with a Customer Interface Unit (CIU) or a head-end Server (HES) from a visual distance up to 1 mile.
With our broad range of prepaid vending solutions, a utility or service provider can manage CAW series water meter along with STS prepaid electricity meters in one vending system.
STS split prepaid water meter will be a great market in Africa, Calinmeter has over 10 years' experience in STS prepayment metering.We design, manufacture STS prepayment meters and ODM/OEM for other meter factories as well. We are so far the only manufacturer in China who have applied STS technology not only electric meters but also water and gas meters. For further information, please feel free to contact us, i am surely that calin is the right one you won't miss for your business!
Features
a) Can be ordered with DN15, 20 and 25
b) Contact-less Transponder technology
c) Split operation with a in home CIU
d) Up to 1 mile communication range
e) LCD and Counter register display
f) Potted electronics making meter water resistant in humid and tropical environments
g) Tamper and fraud proof
h) Low credit warning
i) Over 10 years’ data retention in absence of power
j) Prepared for AMR / AMI functions (optional)
k) DLMS/ COSEM or equivalent open communication protocols
Key benefits
1) Quick and easy installation, ideal for both new reticulation and retrofittings
2) Multi-rate and usage record on Time of Use (TOU) basis
3) Self-register with head-end sever system
4) Flexible setting of free basic water, emergency credit, low credit warning, repayment policy
5) Supports drive-by reading and fully automated reading for AMI smart metering applications
6) Remote reading and valve control on / off
7) Reduced operational and inventory cost
Specifications:
|
Nominal size |
Dn |
mm |
in-line |
||
|
15 |
20 |
25 |
|||
|
Maximum flow rate |
Q4 |
m3/h |
3.125 |
5.0 |
7.875 |
|
Ratio “R” |
Q3/Q1 |
|
80 |
80 |
80 |
|
Permanent l flow rate |
Q33 |
m3/h |
2.5 |
4.0 |
6.3 |
|
Transitional flow rate |
Q22 |
0.05 |
0.08 |
0.126 |
|
|
Minimum flow rate |
Q11 |
0.031 |
0.05 |
0.0787 |
|
|
Minimum reading |
m3 |
0.0005 |
|||
|
Maximum reading |
99999 |
||||
Maximum Permission Error (MPE)
Q1≦Q≦,Q2 MPE =+ 5% Q2≦Q≦Q4, MPE= + 2% (For hot water metering, MPE=+ 3%)
Dimensions and diagram
|
Nominal size |
Length |
Width |
Height |
Thread |
|
mm |
D |
|||
|
15 |
165 |
101 |
124 |
G3/4B |
|
20 |
195 |
101 |
124 |
G1B |
|
25 |
225 |
101 |
124 |
G5/4B |
